Voxel Model Box
This is a CAD model of the main stage area of The Voxel designed to be 3D printed at 1/4" scale. Each component fits on common 256 x 256mm 3D printers. The pieces simply snap together, but you should probably reinfoce it with glue and tape. Includes slots to add 18" wood skewers in the same pattern as the pipe grid.
When assembled, the model measures 18 3/8" x 12 3/8". It requires about 830g of material at common 0.2mm quality.
Use 0.02083 or 2.083% scale to resize CAD models to 1/4" scale. On this model, 1 real-life inch represents 4 feet in scale.
| Thing | Files | Notes |
|---|---|---|

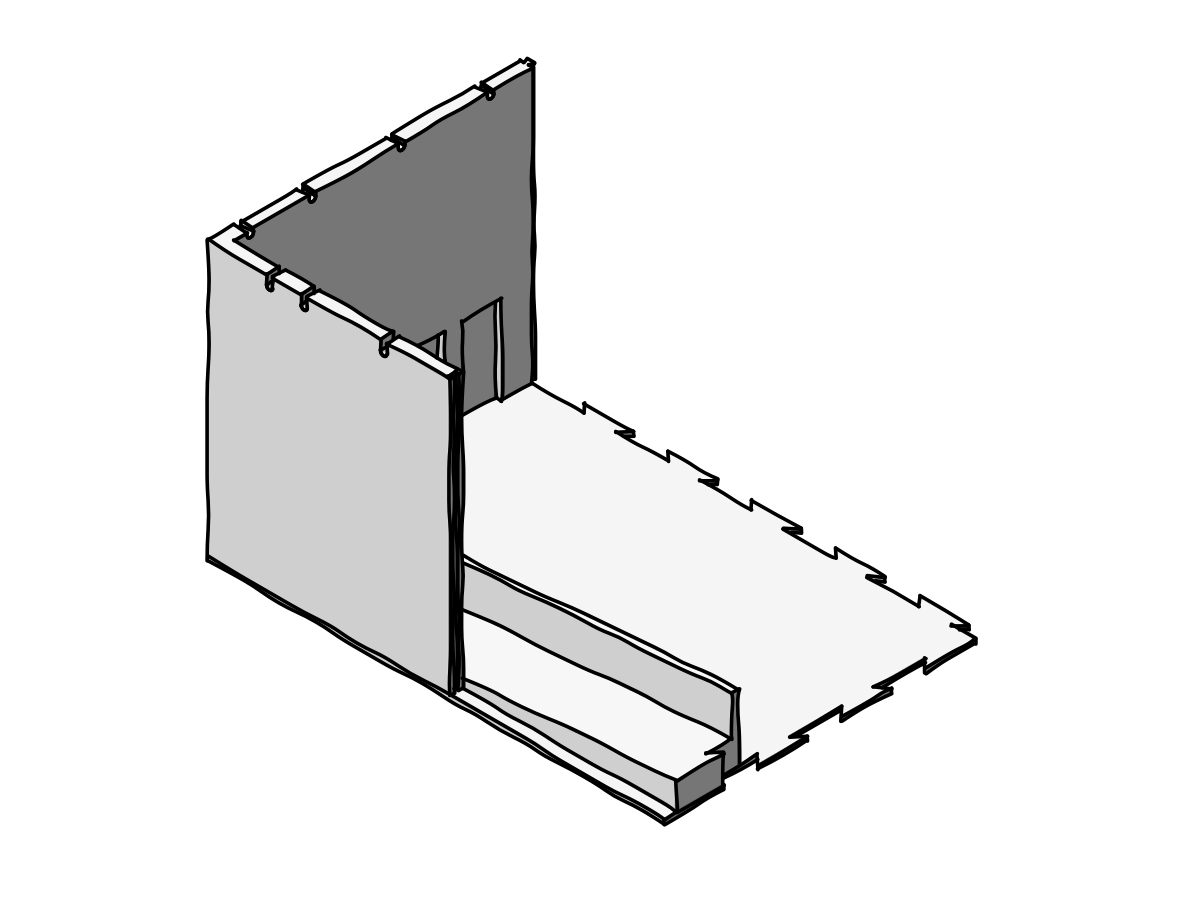

Part A
|
voxel-part-A.stl | |

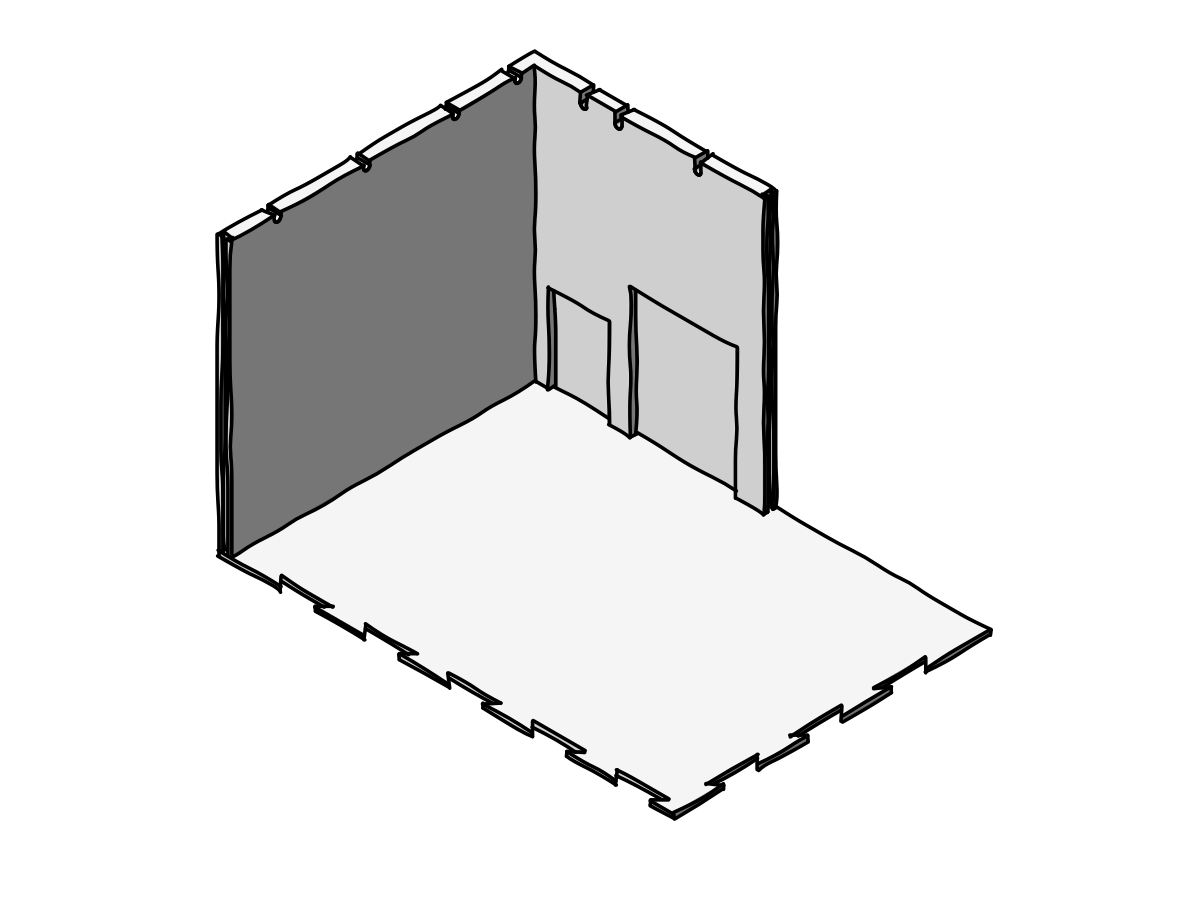

Part B
|
voxel-part-B.stl | |

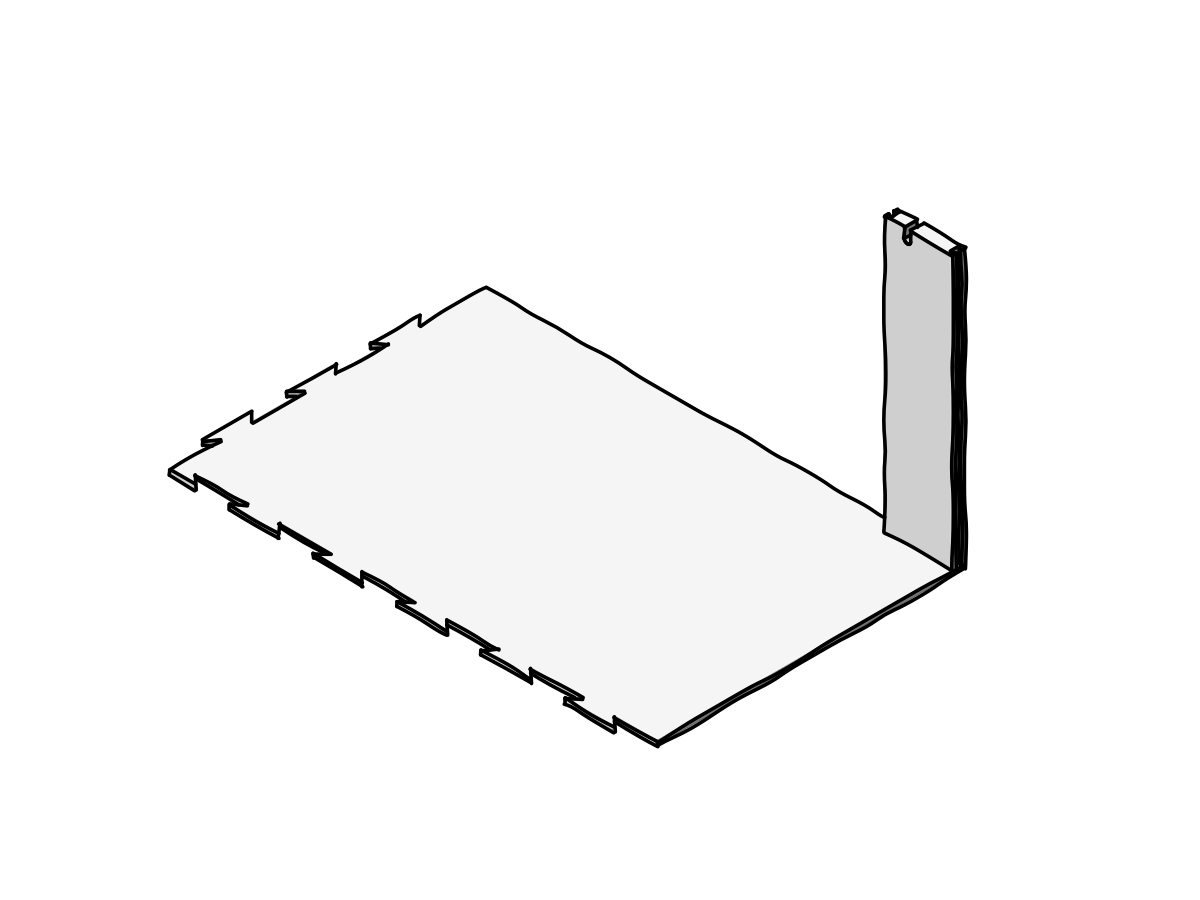

Part C
|
voxel-part-C.stl | |

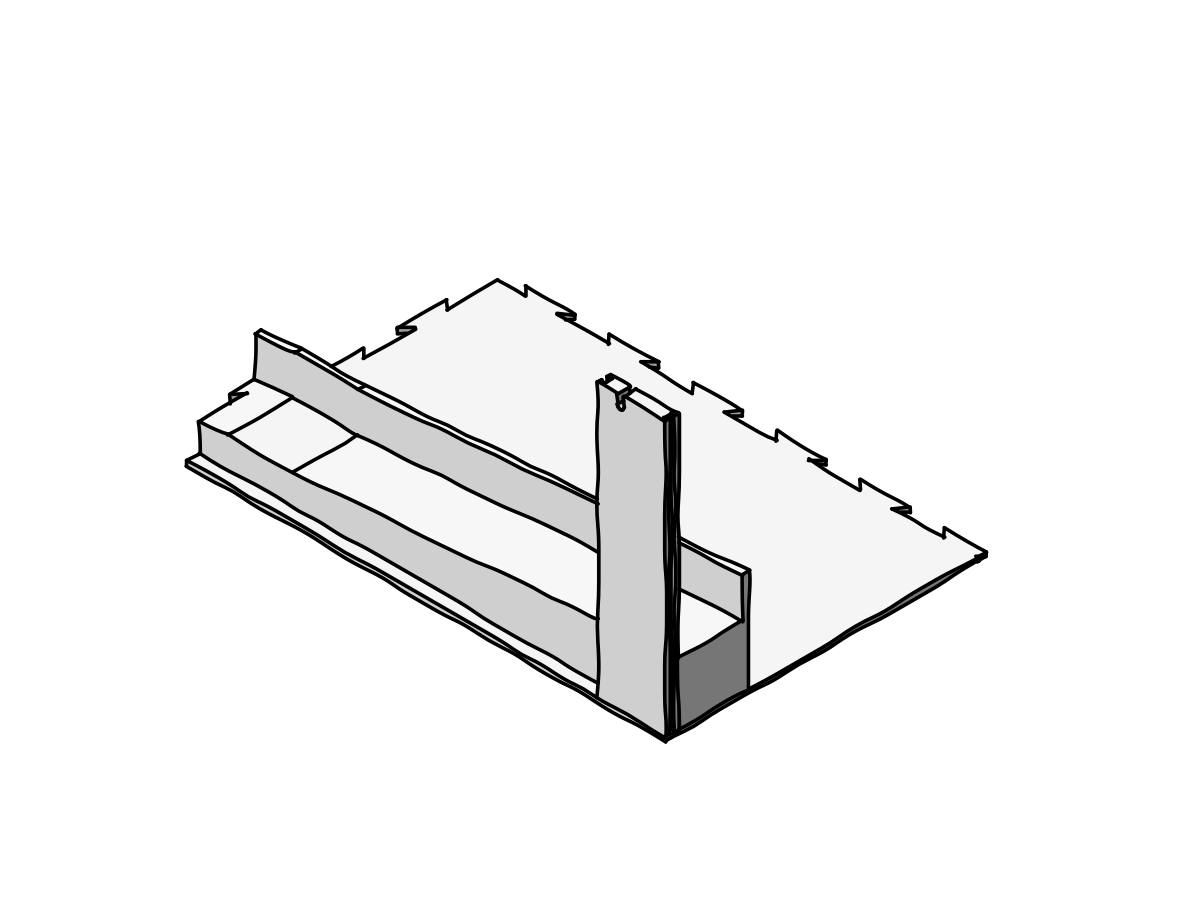

Part D
|
voxel-part-D.stl | |

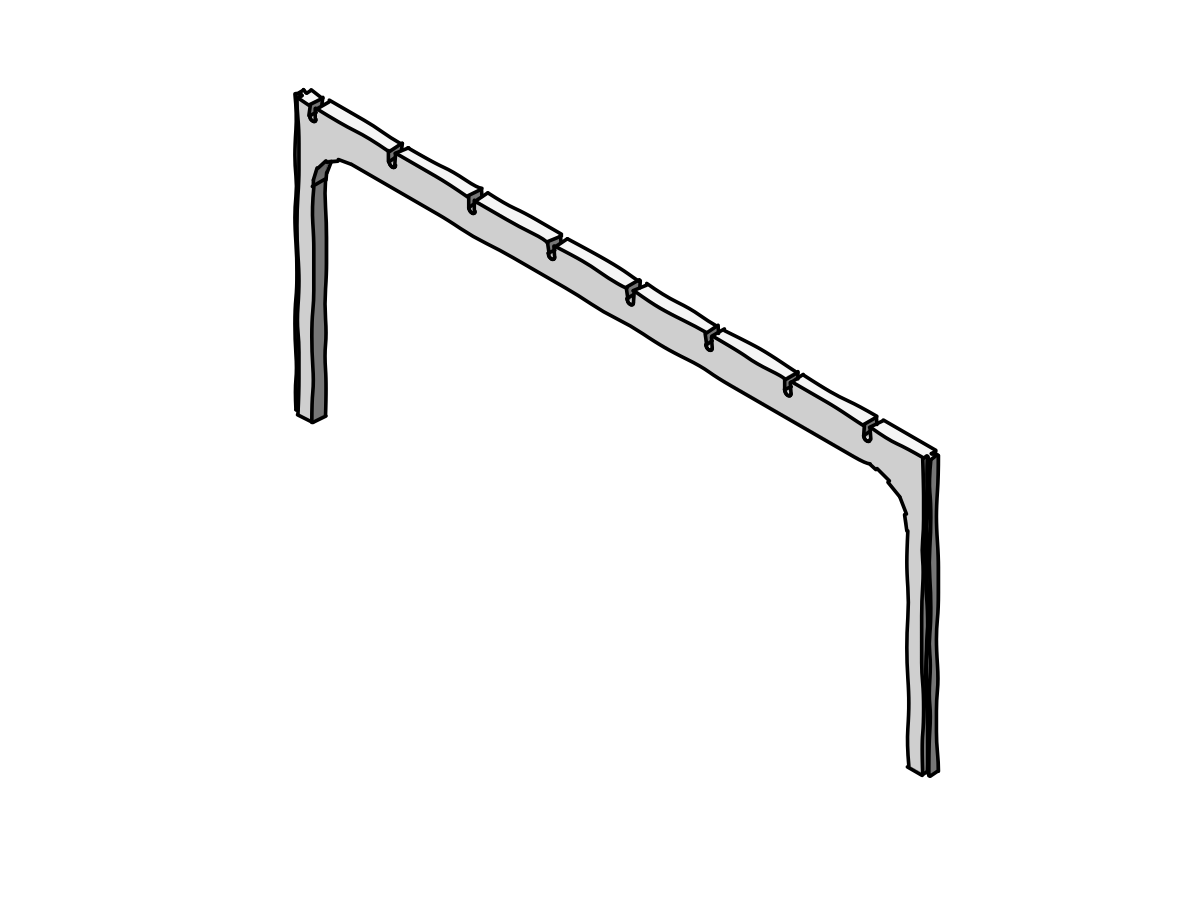

Wall - Open
|
voxel-wall-open.stl | Choose the appropriate number of open and solid walls based on what sightlines and access you need into the model. |

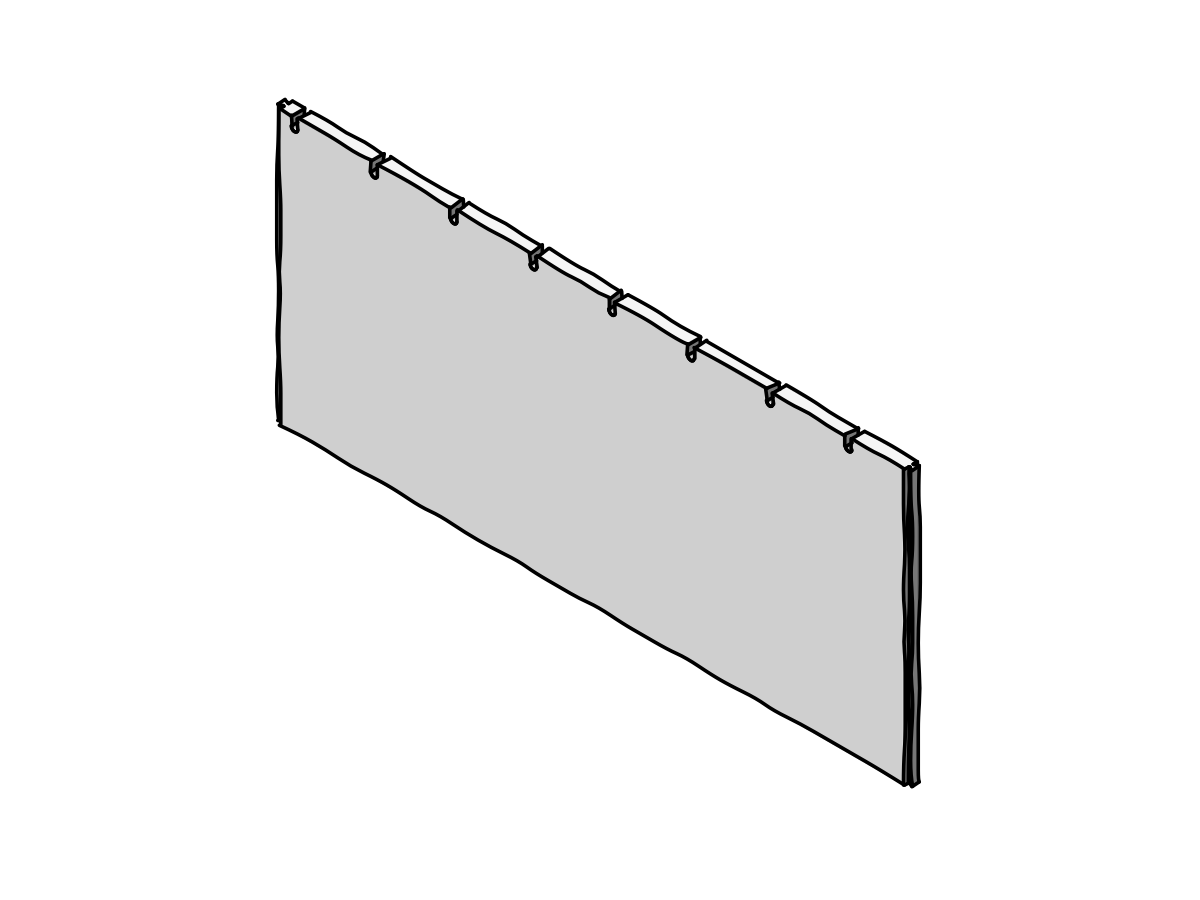

Wall - Solid
|
voxel-wall-solid.stl | Choose the appropriate number of open and solid walls based on what sightlines and access you need into the model. |
Grid Support
|
voxel-grid-support.stl |
