Technical Manual

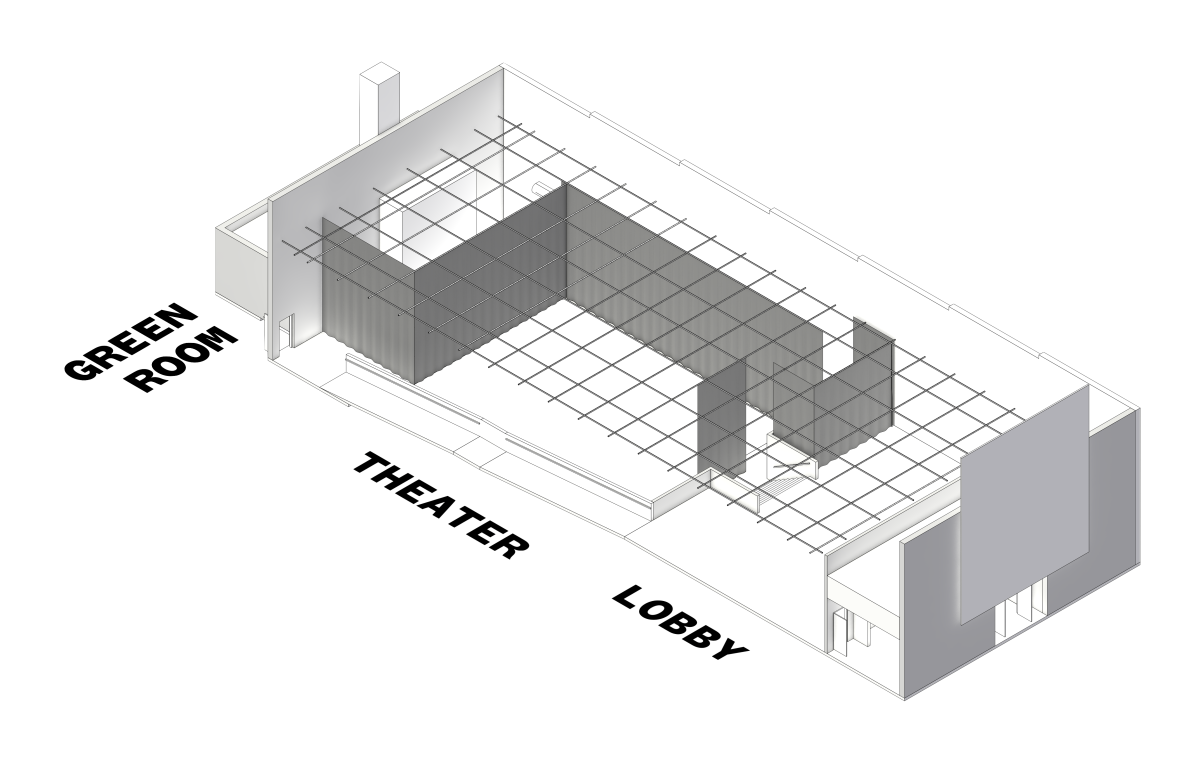

The Voxel comprises a 2,200 square foot black box stage, a 1,900 square foot lobby, and 3,000 square feet of production and support spaces. A pipe grid is installed over the majority of the building, so the space can be reconfigured to suit by using curtains.

As the theater is a flexible black box space, there are no permanent stage lights. All lighting in the theater is hung anew for every project.

The lobby is just as flexible as the stage and may be re-envisioned for many purposes.

Lighting →

• (26) ETC Source Four LED "Lekos"
• (11) ETC ColorSource PAR "Washes"
• (12) GLP Impression FR1
• (1) Chauvet Professional Maverick Force 2 Profile

Audio →

• Yamaha DM7C Digital Mixer
  • 72 channels
  • 48 mixes, 12 matrices, 2 stereo bus
  • 16 XLR analog inputs, 16 XLR analog outputs
  • Additional Tio1608 Dante stage box available
• Shure ULXD4Q 4-Channel Wireless Receiver
  • (4) Wireless handheld mics
  • (4) Wireless lavs
  • Only 4 wireless mics may be used at a time.
• (6) Wired handheld mics
• Theater Speakers
  • (10) Main speakers (360° surround)
  • (2) 18" subwoofers (flown)
• Lobby Speakers
  • (2) Main speakers
  • (2) Subwoofers

Video →

• Projection-mapped stage floor
• (2) 7,000-lumen projectors
• (2) 5,000-lumen projectors
• Portable "conference room" style projection screen

Stage →

• Pipe grid over the whole building
• Loading roll door and scissor lift
• (32) 4' × 4' risers
• (110) Audience chairs
• (5) Folding tables

Productions may paint the stage, but are required to paint it black afterwards.

Control & Networking →

• Mac Studio M1 Max
  • 32 GB RAM, 500 GB SSD
  • QLab 5 Audio + Video + Lighting licenses
• Mac mini M2
  • 8 GB RAM, 500 GB SSD
  • QLab 5 Audio + Video + Lighting licenses
• Mac mini Intel i7
  • 64 GB RAM, 500 GB SSD
  • QLab 5 Audio + Video + Lighting licenses
• The Voxel's Internet service is 1,000 Mbps down and 300 Mbps up.
• Wireless Eartec intercom system with up to 7 headsets — can be split into two separate channels or combined into one.
