Lighting
There are no permanent stage lights or house lights. All lighting in the theater is hung anew for every project, using equipment from our inventory.
QLab Lighting is our primary lighting console. If you wish to bring your own, any console with sACN or Art-Net output can be easily plugged into the network.
Six DMX connections to a single universe are available in the grid. Additional nodes are available for up to (5) universes of sACN or Art-Net output.
Lighting Fixture Inventory
- (8) 50 degree lenses (6 EDLT, 2 Standard)
- (12) 36 degree lenses (Standard)
- (14) 26 degree lenses (Standard)
- (8) 19 degree lenses (EDLT)
- R119 and R132 Diffusion in 6" Frames
- Product Manual
- (10) Medium Round Lens
- (10) Medium Oval Lens
- (3) Wide Round Lens
- Product Manual

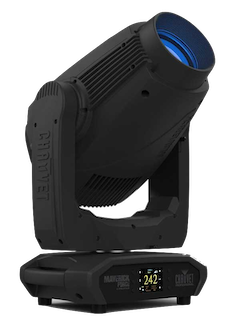

Chauvet Professional Maverick Force 2 Profile
- CMY + CTO mixing
- Color wheel with a CTB and CRI
- 7° - 50° zoom
- 4 rotatable shutters
- Iris, Focus, Zoom, Frost, Prism
- 2 Gobo Wheels
- Product Manual
- RGBW LED Engine
- 3.5° to 35° zoom
- Product Manual
- Continuous Use
- Permanently connected to HVAC ducts
- See TD for training on safe operation
- Product Manual
*Additional fixtures are reserved for the permanent lobby plot and are not available to shows.
Additional Inventory
- Unlimited QLab 5 lighting licenses
- R119 and R132 Diffusion 6" Frames
- (1) 4 port DMXking Art-Net node
- (4) Boom Bases w/8' threaded pipe
- (4) Light Ladders
- 48-circuit ETC Sensor3 Dimmer rack
- Stock 6 Circuit Socapex
- Stock 5 Pin DMX
- Stock PowerCon
- Stock Edison
- Stock Ethernet
Computer Inventory
- Mac Studio M1 Max
- 32GB RAM
- 500 GB SSD
- QLab 5 Audio+Video+Lighting Licenses
- Mac mini M2
- 8GB RAM
- 500 GB SSD
- QLab 5 Audio+Video+Lighting Licenses
- Mac Mini Intel i7
- 64 GB RAM
- 500 GB SSD
- QLab 5 Audio+Video+Lighting Licenses
Power
- 20 Amp Ground-Isolated Receptacles (Edison)
- 12 circuits available on Stage
- 4 circuits available in Lobby
- 20 Amp Utility Receptacles (Edison)
- 10 circuits available on Stage
- 4 circuits available in Lobby
- 400 Amp Company Switch on Stage
- 150 Amp Ground-Isolated Company Switch on Stage
- 400 Amp Company Switch in Lobby
Networked Lighting Devices
The Voxel's production network is primarily handled by a Netgear ProSafe M4300-52G-PoE+ switch. The switch is designed to handle NDI, Dante, Art-Net, and other IP-based control technologies.
- 192.168.5.40 - eDMX-DIN DMX Node
- 192.168.5.41 - eDMX-DIN DMX Node
- 192.168.5.42 - eDMX-DIN DMX Node
- 192.168.5.43 - eDMX4 Portable DMX Node
- 192.168.5.44 - eDMX4 Portable DMX Node
- 192.168.5.45 - Architectural DMX Bridge
- 192.168.5.46 - Dimmer Rack CEM3 Power Controller
