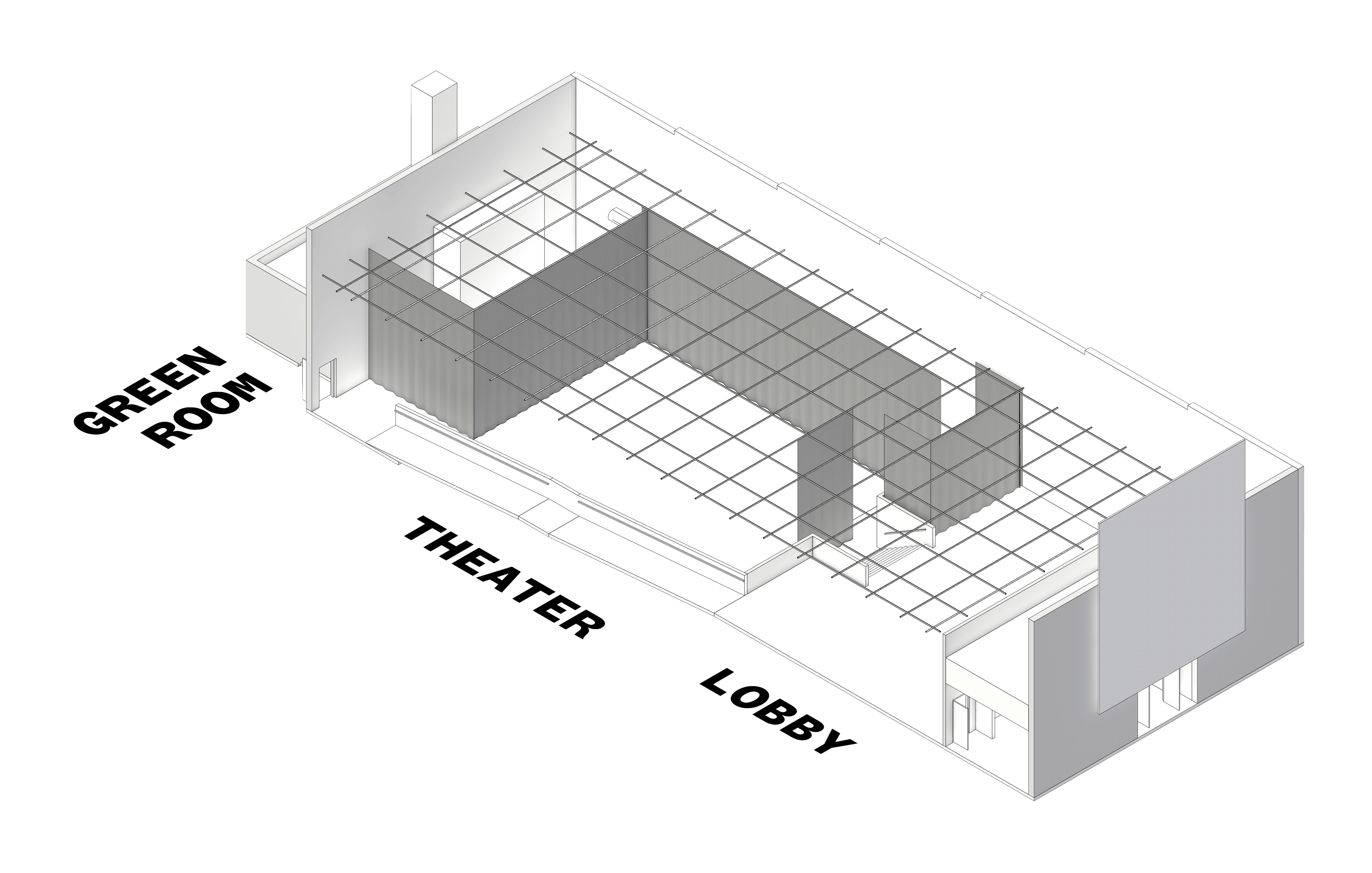

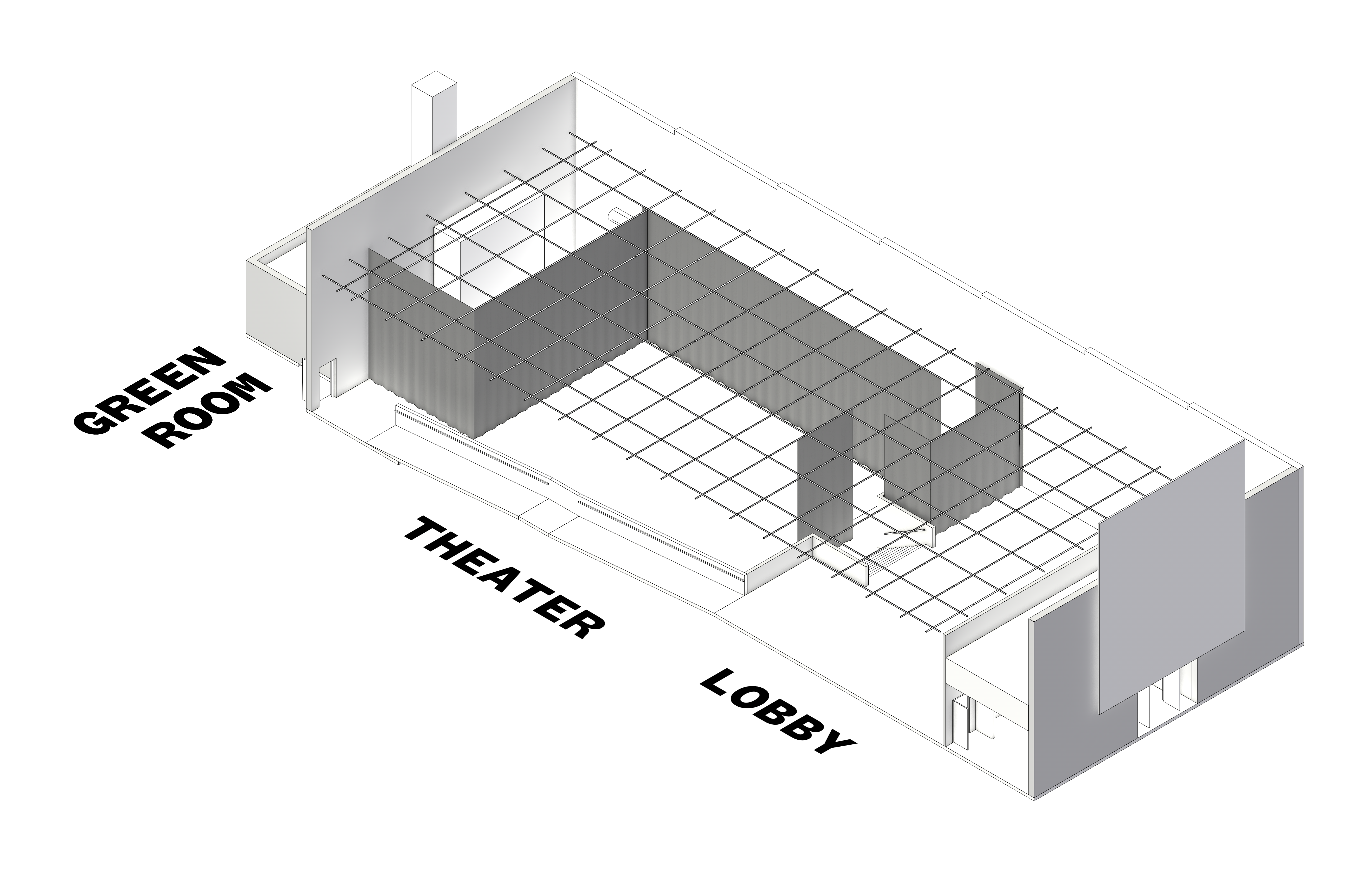

A CAD rendering of the Voxel stage and lobby

Technical Manual

The Voxel comprises a 2,200 square foot black box stage, a 1,900 square foot lobby, and 3,000 square feet of production and support spaces. A pipe grid is installed over the majority of the building, so the space can be reconfigured to suit by using curtains.

As the theater is a flexible black box space, there are no permanent stage lights. All lighting in the theater is hung anew for every project.

The lobby is just as flexible as the stage and may be re-envisioned for many purposes.

PDF Drawings

Vectorworks Drawings

(revision history)

Inventory Overview

Detailed inventories available on each department's page


  • (26) ETC Source Four LED "Lekos"
  • (11) ETC ColorSource PAR "Washes"
  • (12) GLP Impression FR1
  • (1) Chauvet Professional Maverick Force 2 Profile
  • More about Lighting →


  • Yamaha DM7C Digital Mixer
    • 72 Channels
    • 48 Mixes, 12 Matricies, 2 Stereo Bus
  • Shure ULXD4Q 4-Channel Wireless Receiver
    • (4) Wireless Handheld Mics
    • (4) Wireless Lavs
    • (only 4 wireless mics may be used at a time!)
  • (6) Wired Handheld Mics
  • Theater Speakers
  • Lobby Speakers
    • (2) Main Speakers
    • (2) Subwoofers
  • More about Audio →


  • Projection mapped stage floor
  • Portable "conference room" projector and screen
  • More about Video →


  • Pipe grid over the whole building
  • Loading Roll Door and Scissor Lift
  • (110) Audience Chairs
  • (4) Folding Tables
  • Productions may paint the stage, but are required to paint it black afterwards.
  • More about the Stage →

Control & Networking

  • Mac Studio M1 Max
    • 32GB RAM
    • 500 GB SSD
    • QLab 5 Audio+Video+Lighting Licenses
  • Mac mini M2
    • 8GB RAM
    • 500 GB SSD
    • QLab 5 Audio+Video+Lighting Licenses
  • Mac Mini Intel i7
    • 64 GB RAM
    • 500 GB SSD
    • QLab 5 Audio+Video+Lighting Licenses
  • The Voxel's Internet service is 1000 Mpbs down and 300 Mbps up
  • More about Control & Networking →

The Voxel does not have an intercom system, as there is no permanent tech booth to prevent the audience from hearing technical chatter.

Outside Equipment Rental

If your show requires additional equipment not included on this list, let our TD ([email protected]) know! We can help connect you to a local rental shop.
